The Charlton School

Sports Pitch Drainage And Irrigation
Back

CLS Sports have secured the contract to design and construct 1nr U13-U14 Football Association Pitch to Sport England's 'Natural Turf for Sport Design Guidance' 'Comparative of Sports Pitches & Courts'.

As a specialist sports pitch contractor we are able to undertake the detailed design and construction of the pitch for Shepherd Construction.

Size of Pitch

82.30m x 45.72m Association Football Pitch (U13-U14), with 3m run off to all sides. Overall size 88.30m x 51.72m.

Levels Across Pitch

Playing surface should be no steeper than 1:80-100 along the line of play and 1:40-50 across the line of play.

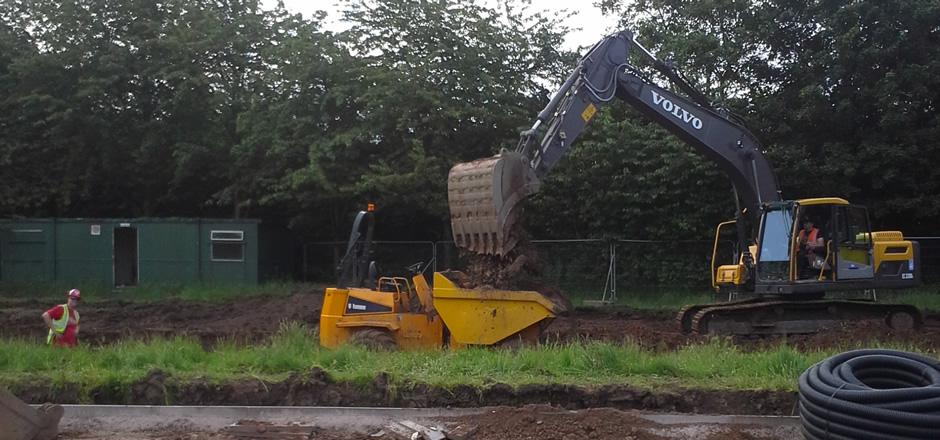

An agronomist will undertake a detail survey of the soil conditions to ascertain the natural drainage of the soil and subsoil on site and the suitability of the existing topsoil on site for the purpose of grass sports pitches to Sport England technical requirements. We will then level the site to +/- 25mm prior to any other work.

Additional work on the site:

Specification

Fenced multi use games area to provide hard court playing provision for the following sports:

And separately:-

The following summarises the key design features of the MUGA with reference to the standards listed above:

Number of Courts/ Pitches

Fenced MUGA to include:

Unfenced games courts to include:

Type of MUGA

To be a "Type One" MUGA as defined by Sport England. This is the preferred surface for tennis and netball.

Size of MUGA

Fenced MUGA to be to Sport England recommended standards in order to achieve the above including run offs: approx 67m x 48.77m. Refer to drawing L-1060-SKP-004 'MUGA' comparison' for more details. Unfenced games area to be to Sport England recommended standards in order to achieve the above including run offs: approx 32.1m x 19.1m.

Levels Across Courts

To be set out to provide a single plane fall no greater than 1 in 100. Falls also to be installed to tie-in with drainage design by others.

Surfacing

Fenced MUGA to be open textured, porous macadam to Sport England guidelines. Construction build ups to be specified by a specialist contractor. Edgings to be pre-cast concrete kerbs - sizes to be advised by others. Maximum gap between outer kerb face and perimeter fencing to be 10mm. Two courses of porous, open textured bitumous macadam to be installed as playing surface. Unfenced basketball court to be open textured macadam to engineer's specification.

Note: this area is to be used to allow for overflow car parking.

Construction build ups to be specified by a specialist contractor. Edgings to be pre-cast concrete kerbs - sizes to be advised by others. Maximum gap between outer kerb face and perimeter fencing to be 10mm.

Playing Lines

To be marked out to Sport England specifications for the game listed above.

Colours to be as follows:

To be 50mm width and applied with a minimum two coats of paint to manufacturers recommendations. All lines to be within 10mm of true position. Lines to be parallel and uniform.

Storage Area

Existing external storage units are proposed to be retained and relocated to area adjacent to sports centre by unfenced court.

Perimeter Fencing to MUGA

To be 3.0m height galvanised, black polyester powder coated weldmesh fencing to BS 1722-14, Cat.1. Welded mesh to be Dirickx CODI 'M' or similar 200mm vertical x 38mm horizontal mesh with 5mm vertical wire diameter and 7mm horizontal wire diameter. Mesh size to be no bigger than 38mm to allow tennis to be played on the MUGA. To include 2nr double leaf gates (3.0m width) within the fence line - locations as per boundary treatment drawings L-1060-GAP-003-004. Suitable locks and ground fixings for the gates in both the open and closed positions to also be provided. All gates to be full height clad with mesh to match fencing. All gates to open outwards and be lockable.

Fixtures and Fittings

Fenced MUGA courts to be fitted with covered, non slip recessed sockets for tennis net posts (2nr per court). Netball goals to be free standing with weighted base & wheels for easy movement. Tennis nets and netball goals to be supplied to suit - to be housed in storage area detailed above. All new equipment to comply with relevant sporting body guidance Unfenced games courts to receive permanently fixed basketball hoops (2nr per court).

Drainage

To be detailed by specialist contractor. Drainage should be to Sport England standards.
