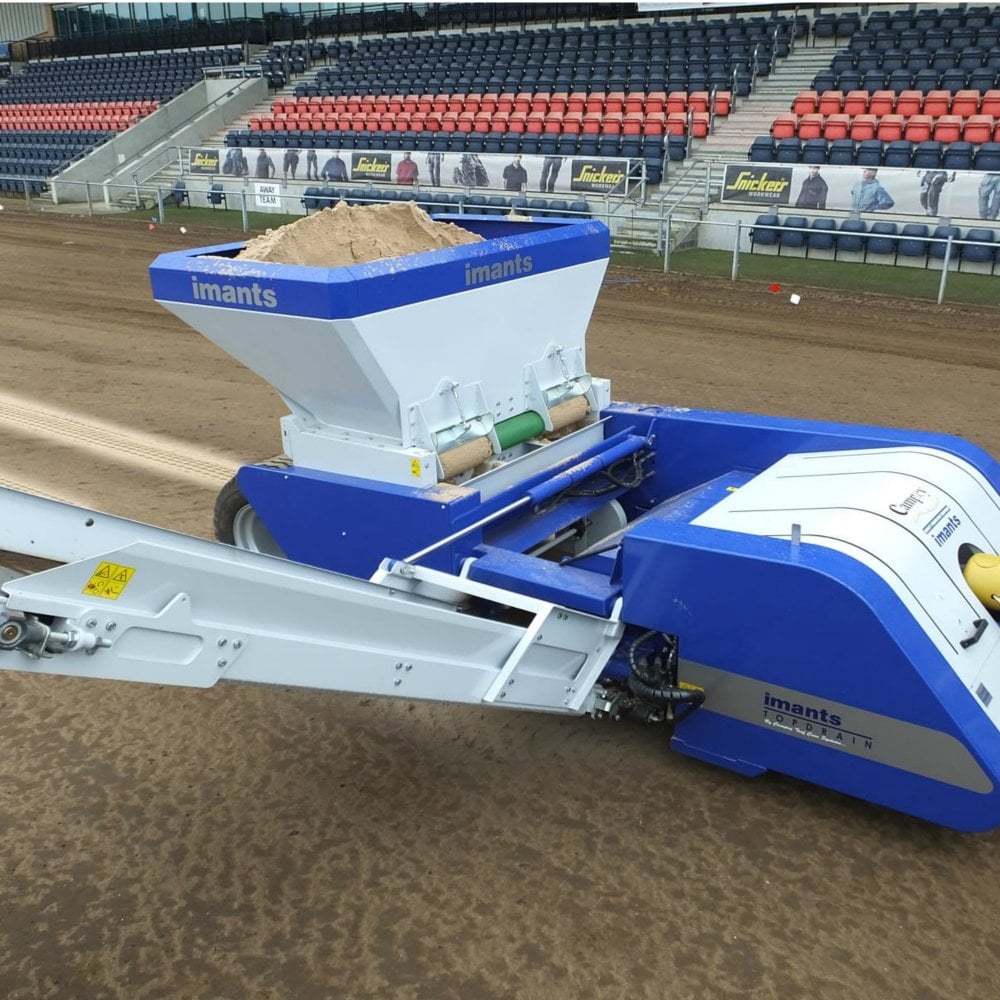

Campey Turf Care Koro by Imants Top Drain 1000

The Koro by Imants Top Drain 1000 is a complete one-pass surface drainage system and a smaller version of the 1500 model.

The TopDrain 1000 is a unique multi-functional machine that trenches, removes spoil, injects sand and re-compacts all in one operation. Designed for sportsfields and golf course fairways, the TopDrain benefits include; material and labour savings, faster processing times and less surface contamination than conventional methods.

The sand grid created by the Top Drain complements existing drainage systems.

Disc Spacing1000 mm
Disc Thickness40 mm
Number of Discs2
Width2240 mm
Operating Speed0 - 3 kph
Length4990 mm
Power Requirements55 hp - 85 hp
Weight2500 Kg
Working Depth260 mm
Working Width1000 mm
