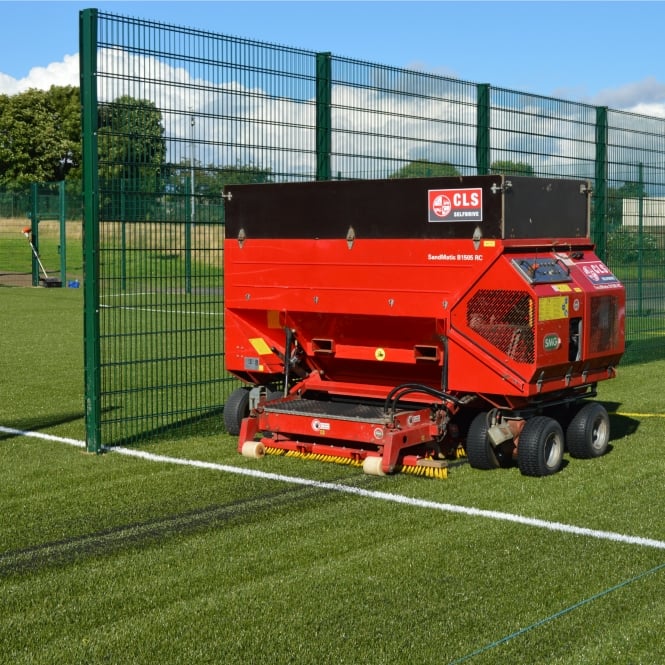

SMG SandMatic B1505RC

This fully automatic, radio-controlled infilling machine applies the exact dosage of sand and/or rubber into modern artificial turf surfaces with ease.

Even when the pile is extremely high the prescribed amounts of sand or granulate can be exactly distributed and worked into the system by use of non-rotating/oscillating brushes. A free-hanging brush unit with separate brushes straightens and evens out the carpet pile as the sand is spread ensuring the pile is in an upright position. The oscillating brush unit which follows, is adjustable in height and works the material into a level surface in one process.

The required quantities of sand and rubber granules are exactly distributed and spread in proportion to the speed at which the machine is driving using the automated settings. The infill material can be applied at a rate of 2.5 - 40 kg/m².

The weight of the machine is supported by 8 air-filled, low-pressure tires which conform to the low ground pressure requirements of synthetic surfaces. The four pairs of wheels can be pivoted through 120° for extremely easy manoeuvres and forklift slots make loading a safe operation.

Sandmatic and Sandmaster
Maximum Filling Weight1500 Kg
Spreading Performance5.5 - 40 kg/m2
Spreading Width1500 mm
Height1350 mm
Width2650 mm
Length1250 mm
Weight1300 Kg
Maximum Container Volume3 m2
